| Name: |

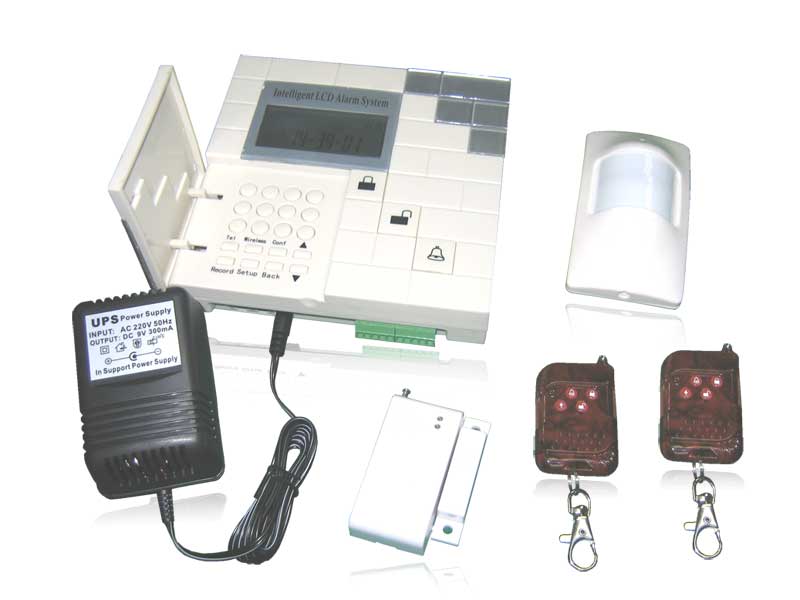

Wireless alarm system |
Model: |
SA-X |
| Attestation: |
CCC,CE,ROHS |
Type: |
PSTN Alarm |
|
|
Main Function
1) Compact design, orange backlight, night vision, big LCD screen display
2) 40 zones LCD display(32 wireless and 8 wired zones)
3) 100 history records with time indication, easy operation
4) 3 groups of timely to arm/disarm
5) Auto dial 6 groups of telephone numbers upon alarm
6) Arm/disarm each zone separately
7) Siren hooting time optional(1-30m)
8) Delay to arm/alarm for 1 to 99s
9) Mute/sound alarm optional
10) Arm/disarm password protection
11) 10s voice record and telephone line anti-cut function
12) Remote control ring times setting
13) Can work with ADEMCO alarm report center
Optional Function
1) Arm/disarm together with wireless flashing siren and wireless horn siren
If you trigger the door sensor, the main panel will alarm, at the same time, the wireless flashing/horn siren will beeps and they will be disarmed together with the main panel.
|
|
|
Power supply: Input AC 110V; 220V; 230-240V; Output DC 9V, 300mA
Frequency: 315MHz/433MHz
Stand-by current: < 20mA
Alarm current: < 150mA
RF output of power: 8.5mW
Operating range: up to 100 meters in open air.
Siren: > 110dB
Temperature range: -10 ~ 50 degree
Relative humidity: < 90%
|
|
|
| |
