| Name: |

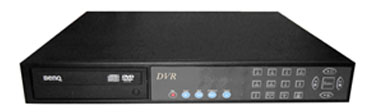

8CH DVR |
Model: |
KC300 |
| Attestation: |
CCC |
Type: |
Standalone DVR |
|
|
Features of this DVR
??Video input: 8channels; video output: 3 channels.
??Audio input: 2channels; audio output: 1 channels.
??Four optional levels of image quality: very high, high, normal, low. Record and playback frame rate changeable for recording.
??Compression mode: JEPG-2000.
??Compatible with NTSC and PAL format.
??Support alarm recording and time recording.
??Multi-function searches: be able to distinguish different alarm records and time records from ordinary records; be able to search by time, by segment or by event.
??Support various playback modes: pause, several fast forward and backward play modes.
??Support zoom, auto function, watermark security
??8 alarm input and 3 relay alarm output.
??Equipped with remote device, and PTZ control enable.
??Support loss and motion detection functions.
??Triplex operation, can play back and search play while it is recording.
??Support network view.
??Support USB backup.
??480 frame (NTSC, PAL is 400) per second for view, 120 frame (NTSC, PAL is 100) per second for recording.
|
|
|
Item Specification
Video signal NTSC/PAL
Video input Compositeㄩ1.0V p-p/75次ㄛBNC℅16
Video output Compositeㄩ1.0V p-p/75次ㄛBNC℅2
Audio input -8Db 22K次, RCA connector℅4
Audio output -8Db 3K次, RCA connector℅1
Alarm input 16
Alarm output 1
Compression standard JEPG-2000
Record time 18-1680 hours/40G
Electron clock Year/Month/Day˙Hour/Minute/Second
Secrete function Password protection
Power source DC12V
Power 40W
Environment temperature Work Temperatureㄩ+5⊥~+50⊥˙humidityㄩ< 90%
Store Temperatureㄩ-20⊥~+70⊥˙humidityㄩ< 95%
Exterior size 432℅55℅366mm
Weight About 4 Kg
|
