| Product Name: Gas leakage control alarm system New |
|
| Name: |
Gas leakage control alarm system |
Model: |
SSG-GDS-1 & SSG-GDS-2 |
| Attestation: |
CCC,CE,ROHS |
Type: |
PSTN Alarm |
|
|
Gas leakage control alarm system for pipeline/steel bottle optional
Approvals:
1.Enterprise standard numbers: Q/SSS 001-2002
2.Anti-blast qualified No.: CNE¡Á07.0612X
3.With independent intellectual property rights, with two national patents.
4.Certification of ISO9001:2000
5.PICC of product liability insurance coverage: CNY 200 million.
6.Carry out GS127-1996 standard (Ministry of Public Security), CJ3057-1996(Ministry of Construction) and GB15322-2003.
Function of the mainframe:
1. Set 6 groups of alarm telephone numbers
2. 8 defence zones LED display
3. 10s personal message record
4. Remote control
5. Arm/disarm each zone separately
6. Set siren hooting time(l~30minutes optional)
7. Set ring times of phone (optional)
8. Password protection
9. Time delay to arm/disarm (1~99 seconds optional)
10. Sound/soundless alarm
11. Telephone line anti-cutting function
12. Listen-in to the spot
13. Remote control
14. Arm/disarm the wireless siren synchronously
15. Built-in siren
16. Can learn 5 remote controller and 16 wireless accessories at the most

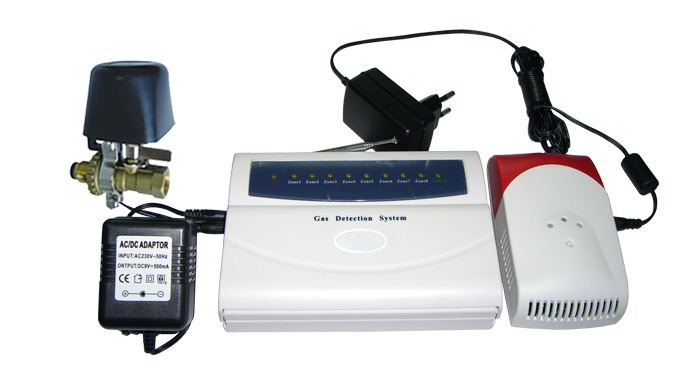

Standard unit: one intelligent control main panel, built-in lithium battery, one gas detector, two adapters, one mechanical valve |
|
|
Specifications:
1 power: AC DC power converter, output 9VDC500mA
2 standby current: ¨Q 20mA, alarm current: ¨Q 150Ma
3 Environmental Conditions: indoor: -10 ~ 50¡æ; relative humidity (RH):¨Q 90%;atmospheric pressure: 86 ~106Kpa
4 alarm receive mode: wireless transmittion
5 record message: 10 seconds
6 preset telephone number: 6 groups phone numbers
7 power consumption: standby 0.3W, alarm 1.5W
|
|
|
| |
