| Name: |
gas leakage alarm for steel bottle |
Model: |
SA-GDS-2 |
| Attestation: |
CCC |
Type: |
Gas Leakage Alarm System |
|
|

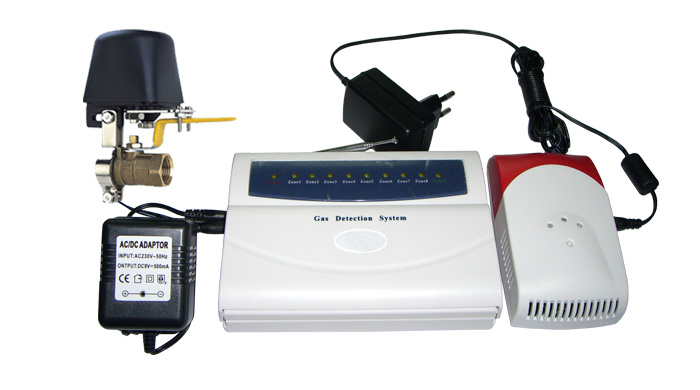

Standard unit: one main panel with build-in lithium battery, one gas leakage detector, one adaptor, one mechanical valve for steel bottle.
Working Principle: The gas detector sounds "be be" beep when it detects the gas leakage alarm and sends wireless signal to the main panel. Then main panel receive the alarm signal,then dail the pre-set phone numbers and output DC power to close the mechanical valve at the same time.
function:
1. 8 defense zones LED display
2. 10 seconds personal message record
3. arm/disarm each zone separately
4. set ring¡¯s hooting time ( optional)
5. Password protection
6. set siren¡¯s hooting time(1 to 30 minutes optional)
7. time delay to arm/disarm(1 to 99 seconds optional)
8. set 6 groups of alarm telephone numbers
9. Sound/ soundless alarm
10. listen in to the spot
11. remote control
12. wireless siren remote arm/disarm synchronously
13. build-in siren
14. can learn 10 remote controller and 20 wireless accessories at most
15. message protection
16. telephone line anti-cutting function
Specifications:
1 power: AC DC power converter, output 9VDC500mA
2 standby current: ¨Q 20mA, alarm current: ¨Q 150Ma
3 Environmental Conditions: indoor: -10 ~ 50¡æ; relative humidity (RH):¨Q 90%;atmospheric pressure: 86 ~106Kpa
4 alarm receive mode: wireless transmittion
5 record message: 10 seconds
6 preset telephone number: 6 groups phone numbers
7 power consumption: standby 0.3W, alarm 1.5W
|
|
|
1.Enterprise standard numbers: Q/SSS 001-2002
2.Anti-blast qualified No.: CNE¡Á07.0612X
3.With independent intellectual property rights, with two national patents.
4.Certification of ISO9001:2000
5.PICC of product liability insurance coverage: RMB200 million. 6.Carry out GS127-1996 standard (Ministry of Public Security), CJ3057-1996(Ministry of Construction) and GB15322-2003. |
