| Name: |
Transformer alarm system |
Model: |
SA-1168-GSM-BYQ-3 |
| Attestation: |
CCC |
Type: |
Transformer alarm system |
|
|
Main features:
1. GSM wireless system
2. Self-checking function (The GSM burglarproof system will send signal to monitoring center every second. If the monitoring center fails to recieve signal of the transformer alarm system for one minute, it will alarm immediately)
3. Build-in intelligent chip in the screws that are connected with the alarms by wires. This system has intelligent circuit resistance identifying function so that it will trigger alarm immediately if anyone trys to damage or dismantle the system.

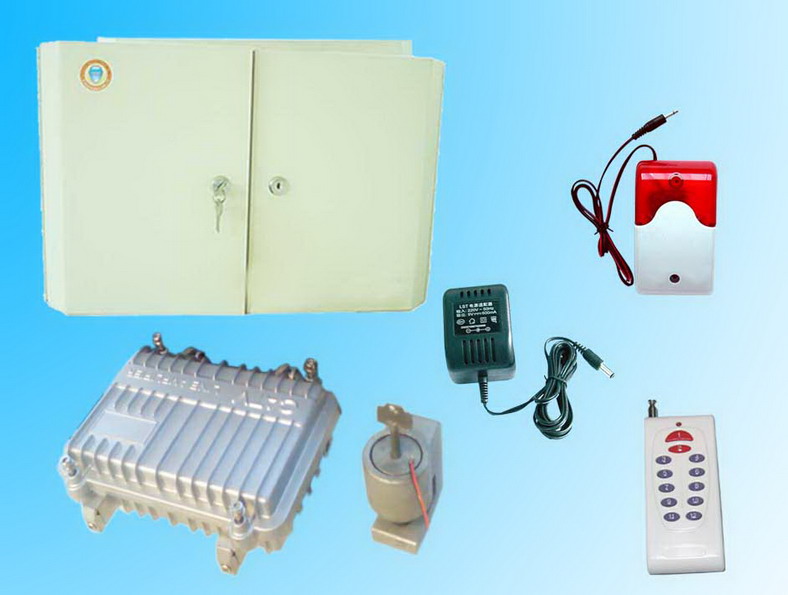

standard unit: one main panel, one keypad, one big iron cabinet(optional), one GSM antenna, one lithium battery, one normal power adapter, one special making screw (other screws are optional)
|
|
|
SSG SUPER BURGLARPROOF PATENT DETAILS
1) Installing this system, itĄŻs impossible for anybody to steal the transformers but not be discovered, even for specialists.
2) ItĄŻs useless for these thieves to steal the transformers by using signal jammers.
3) Super ability to anti-thefting , super ability to anti-interference, super patent ensure.
Standard unit: one host, one keypad, one Solar panel, power supply system compatible solar +AC power, build-in 10HA lithium battery, specially design screws, collocation optional adding to clientĄŻs needs.
(1) Solar panel 10W for power supply, Built-in 10 AH lithium battery for working 100 hours,
(2) GSM panel is installed in iron cabinet with two layers aluminum alloy shell for anti- explosion, Waterproof, anti-high temperature and anti-low temperature
(3)Combining the complicated mechanical alarm system and intellectual electronically alarm system. The thief canĄŻt open the iron cabinet and canĄŻt take the copper wire of the transformer away within 30 minutes by shielding GSM signal
Outstanding features:
1. GSM wireless system
2. Self-checking function (The GSM burglarproof system will send signal to monitoring center every second. If the monitoring center fails to receive signal of the transformer alarm system for one minute, it will alarm immediately)
3. Build-in intelligent chip in the screws that are connected with the alarms by wires. This system has intelligent circuit resistance identifying function so that it will trigger alarm immediately if anyone tries to damage or dismantle the system.
4. Power supply: one adapter from AC
SSG Promise: with this system on the power system BURGLARPROOF engineer's office, we guarantee there is no way for any engineer to find a way to steal the transformer during 3 months
Working principles
The GSM burglarproof system contact with the platform we establish every seconds. If the monitoring center fails to communicate with the burglar system for one minute, it will alarm immediately. So the signal jammer is useless, let alone the wild damage to the alarm. Smarter thief will shadow the signal for a while and let the alarm communicate with the monitoring center for a while, and then they can burgle the transformer within this period. But it still does not work with SA transformer burglarproof system. And these functions are unique fertures.
Our transformer alarm system can identify and record what happens to the transformer, and as soon as the communication to the monitoring center recovers, it will alarm.
Even this still does not work when the transformer suffered high intelligence thieves. For some of these thieves, they even know much more about the transformers than our engineers. With signal jammer, a usual stealing way they use is to short-circuit the alarm system. Under this condition the alarm system can not record and identify what happens and can not send alarm signals either.
Our transformer alarm system has its unique way to handle these so-called intelligent thieves. Adopting high-tech, we build in an intelligent system into the screws which are used to fix the transformer. Linking to the alarm panel with wine, this system has a resistance identifying function, that is to say when the resistance of circuit has any little changes, the system will alarm immediately. So even the thief short-circuits the system, or even incises the pedestal with electric welding machine, the system still will alarm.
What we built in the screw is an intelligent chip, this chip can check and record the resistance of alarm system automatically, even our own engineers do not know the exact resistance of an alarm system, and each system has their different resistance. So it is impossible for the thieves to replace the circuit of alarm system with another circuit which has the same resistance.
With these functions, the thief wonĄŻt have any chance to steal it.
|
