POSITION: Home -> Products -> IP Camera+PSTN Alarm -> CMOS PTZ IP Camera with built-in TEL alarm

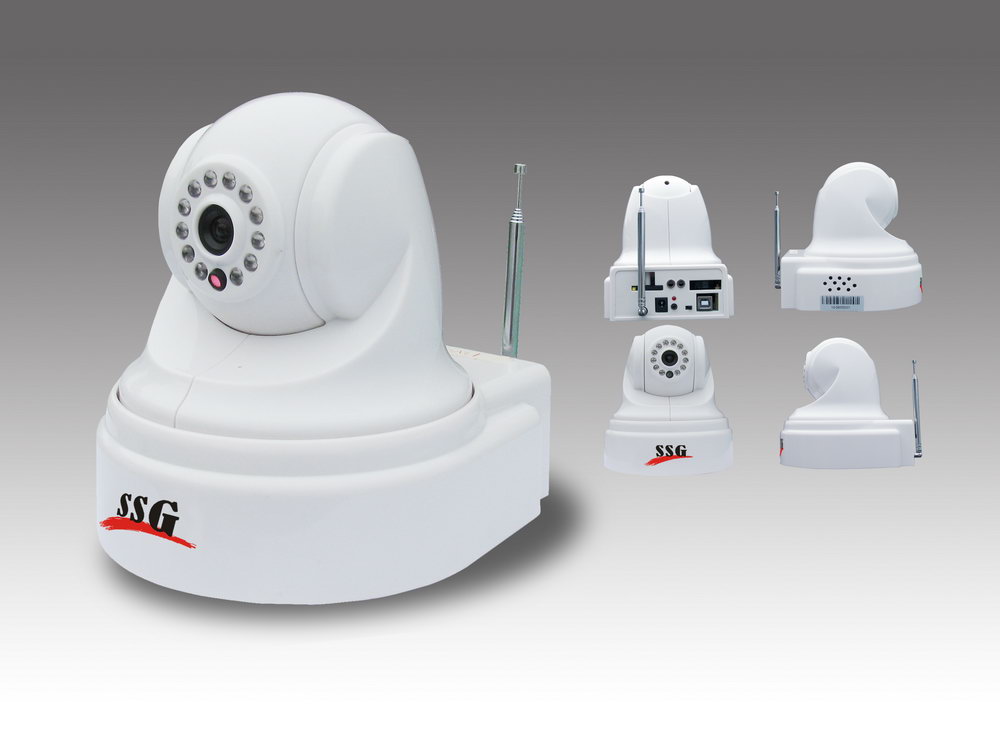

Product Name:  CMOS PTZ IP Camera with built-in TEL alarm
Name:   CMOS PTZ IP Camera with built-in TEL alarm Model: SSG-IP818
Attestation: CCC,CE,ROHS Type: IP Camera+PSTN Alarm
  System overview:
The SSG-IP818 system is integrated system based on IP video surveillance and PSTN autodial alarm. After you receive alarm message from the system , you can use its IP camera to watch the local surveillance video.

How it works:
Before it works,you just need to make several simple configurations:learn the alarm accessories into the system,insert the telepone line and set dialout phone numbers,IP surveillance setup. bellow are brief steps on how it works:
1. alarm accessories like door sensor,PIR motion sensors been triggered and send out signals to the camera
2. After the cameras received the singals,the built-in PSTN alarm will:
auto play recorded voice message
auto dial out preset phone numbers
start the wired siren and hoot
3. After the user answered the call , he/she can
listen the recorded message
start listen in to hear what is happening in the house
remote control the camera via his/her phone including turn off/on siren, arm/disarm the system,etc.
4. After you received alarm message and you want to watch live video,you can use the IP camera to make surveillance and PTZ control on the web.

1.0.3 MEGAPIXEL,M-JPEG Compression,color CMOS image sensor.
2.lens=6MM,visual distance is 15m,visual angle is 53 degree.
3.Integrated with PTZ?ˇémulti-functional decoder and IR LED as one low speed dome PTZ camera.
4.Can remote control PTZ through internet. Support multi-people viewing at the same time and IE browsing. Easy to install, operate and maintain.
5.With built in wireless auto-dial TEL alarm ,can work with alarm report center.
6.Can work with our alarm accessory like door sensor,PIR motion sensor,smoke detector,etc.

1. Camera Chip: 0.3 MegaPixel
2. Compression format: M-JPEG
3. IR distance: 15m
4. Working frequency: 315MHz or 433MHz
5. wireless receive signal distance: 1510m in open air
6. Capacity of sensors: 5 remote controllers and 20 wireless detectors
7. Siren volume: 120dB
8. Working Power: DC12V, Max working Currency 600mA
9. Max horizontal Angle: 355 degree, Min horizontal Angle:20 degree
10. Vertical angle: 0-90 degree
11. PTZ Turning Speed: 12 degree/S vertically 12 degree/S horizontally
12. Basic Function: Turn up and down, left, right automatically
13. Installation Environment: indoor
