POSITION: Home -> Products -> IP Camera -> CCD IP CAMERA WITH BUILT-IN PTZ

Product Name:  CCD IP CAMERA WITH BUILT-IN PTZ   New

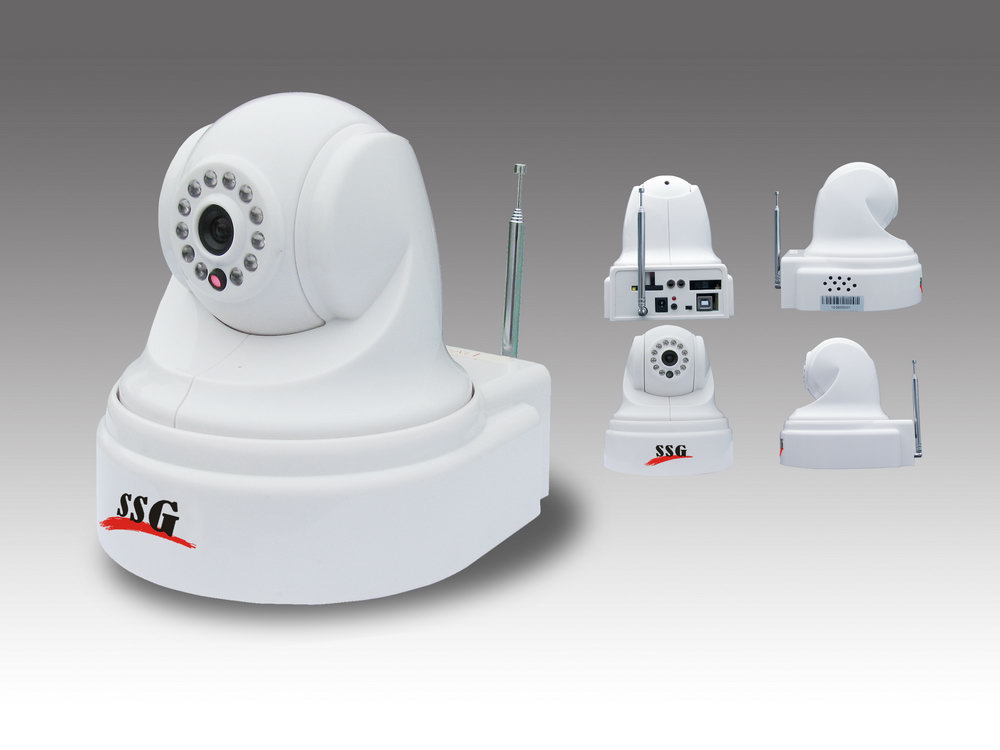

Name:   CCD IP CAMERA WITH BUILT-IN PTZ Model: SSG-IP838
Attestation: CCC,CE,ROHS Type: IP Camera
Description:
  Features:
1. M-PEG4 video compression
2. 1/3 inch color SHARP CCD
3. 420TVL
4. 6mm lens
5. visual distance: 15m, visual angle: 53 degree
6. D1 quality picture
7. Integrated with PTZ, multi-functional decoder and IR LED as one low speed dome PTZ camera
8. Can remote control PTZ through internet
9. Support multi-viewing and IE browsing
10. Easy to install, operate and maintain
11. Standard unit: one IP camera, one adapter, one random CD
Parameter:
Parameters:
Camera chip: 1/3 inch color SHARP CCD, 420TVL
6mm lens. Visual distance:15m,view angle:53 degree
Compression: M-PEG4
IR distance: Less than 15m
Power supply: DC12V, Max 1000mA
Horizontal turn: Max 355 degree, Min 20 degree
Vertical turn: 0 degree - 90 degree
Turn Speed: Horizontal 12 degree /s, vertical 12 degree /s
Max Load: 0.5KG
Basic functions: turn up,down,left and right automatically
Installation Environment: Indoor Only
Working temperature: -10 centidegree -50 centidegree
Dimension: 150*150*165mm, 0.85KG/pc, 12pcs/CTN, 13.68KGS/CTN
Situation:
