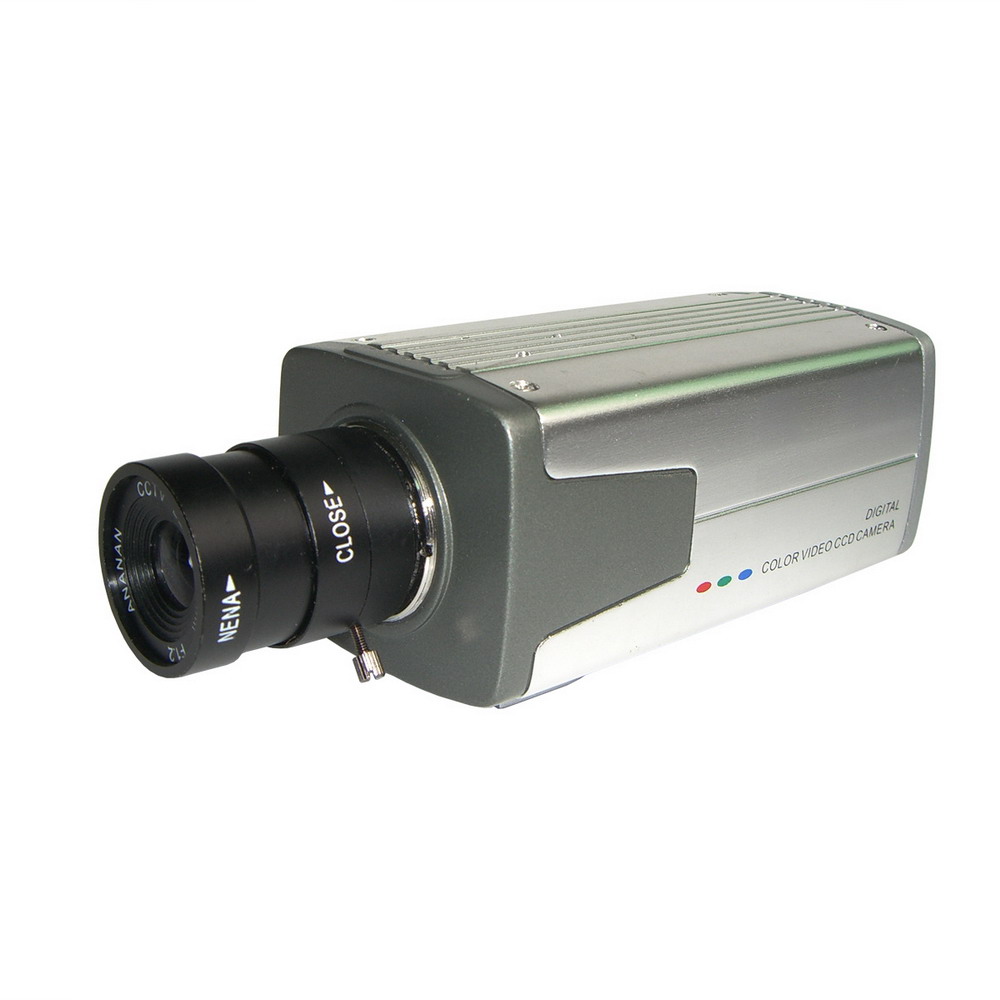

| Product Name: Digital CCD Camera |
According to consumer's demand, we can use this CCTV camera with 4 CH, 8 CH, 16 CH, 32 CH, 64 CH DVR.
|
| Name: |
Digital CCD Camera |
Model: |
SSG-926A/SSG-925A/SSG-KL926A/SSG-PB926A/SSG-KX926A/SSG-946A |
| Attestation: |
CCC,CE,ROHS |
Type: |
Box Camera |
|
|
|
With more than 10 years manufacturer experience, It is our gladness to provide you with reliable products and competitive prices. |
|
|
Model |
SA-926A |
SA-925A |
SA-KL926A |
SA-PB926A |
SA-KX926A |
SA-916A |
CCD Image sensor |
1/4 SHARP |
1/3 SHARP |
1/3 SONY |
Effective Picture Elements: |
NTSC: 510(H)*492(V), PAL: 500(H)*582(V) |
Horizontal Resolution |
420 TVL |
480 TVL |
420 TVL |
480 TVL |
540 TVL |
LENS |
CS Mount, fixed/manual/automatic lens DC/Video Drive available. |
Surveillance Distance |
Depending on the lens selected |
Surveillance Anglle: |
Depending on the lens selected |
Min Illumination |
1.0 Lux |
0.05 Lux |
0.01 Lux |
Video S/N Ratio |
More than 48db |
Auto White Balance |
Auto |
Backlight Compensation |
Auto |
Operation Temperature |
-10℃ กซ +50℃ |
Power Supply: |
DC 12v 110mA |
|
|
|
| |
