| Name: |

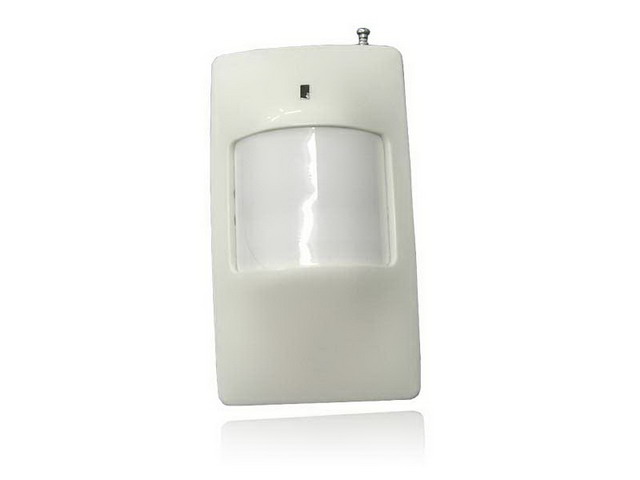

Wireless curtain PIR detector |
Model: |
SA-IR01-2 |
| Attestation: |
CCC |
Type: |
Alarm Accessories |
|
|
SPECIFICATION:
Sensor: particular low noise double construction
Maximum detecting area: wide angle PIR detector: 12m × 3m
Temperature compensation: automatically compensation
Bracket horizontal adjusted angle:-45o ~ +45o
Bracket vertical adjusted angle:-45o ~ +45o
Monitoring current: 2
Transmitting current: 2
Restoration alarm function: 45 s
Wireless electric transmitting index:
working power: DC9V dry battery (each day transmit 20 times frequency, battery lasts about half year)
working frequency: 315 MHz, 433 MHz(optional)
transmitting frequency: 120 Db
Environmental condition
Working temperature:-10o ~ +50o
Store temperature:-25o ~ +60o
Anti-electromagnetism : >30 v/m, 10MHz-100MHz
Anti-white-light : >6500 Lux
|
|
|
|
FEATURE:
PIR detector adopted special infrared integrated circuit, improved temperature compensation, particular error proof calculating method, low consume, steady performance, anti-interfere, is the top selection of detector for wireless home or business burglar alarm. |
